wIRELESS CHARGER PCBA
15W 100W 200W 500W Wireless Charging Modules PCB & Coils
ONE POINTECH has a wide range of wireless charging modules to work with your different applications. From 2.5w up to 3kw, all the standard and customized wireless charging PCBs are available. OEM and ODM welcome.
Contact us to get a quote today. No MOQ.Â
2.5 Wireless Charing Module PCB
High-efficiency wireless charging PCB with dual power output (2.5W/5W). Long-range transmission up to 50mm with 18W input. Fully certified (FCC, CE, RoHS) and compliant with UL requirements for maximum safety.
Applications: Smartphones, wearables, earbuds, smart home devices, IoT sensors, medical devices, retail displays, furniture integration, automotive accessories, office equipment.
- Input: 19V/0.94A (18W)
- Output: 2.5W/5W
- Charging Distance: 0-50mm
- Certificates: FCC, CE, RoHS
- Products meet UL certification requirements.
- Applications:
Long-Range Wireless & 45W Wired Charging Module PCB
Advanced dual-function charging module supporting Qi-BPP standard with exceptional 20-50mm transmission range. 86% efficiency with iPhone 16. Multi-device compatible (iPhone 7.5W, Samsung 10W) with ±8mm offset tolerance.Â
Applications: Furniture integration (tables, desks, countertops), automotive consoles, public spaces, conference rooms, retail displays, smart home fixtures, hotel amenities, medical equipment, sealed industrial environments, multi-device charging stations, through-surface mounting solutions, high-traffic commercial areas.
- Qi-BPP, iPhone 7.5W, Samsung 10W, 45W USB-C
- Input: 19V/3.42A (65W)
- Charging Z-Distance: 20-50mm (with resonator pad)
- Typical efficiency: 86%* (*iPhone 16 at 15mm distance)
- Protection: FOD, OCP, OVP, OTP
- Certificates: FCC, CE, RoHS
- Products meet UL certification requirements.
Long-Range Qi-BPP/EPP 15W Wireless Charging Module PCB
Versatile charging solution with 3-20mm transmission range and 83% efficiency with iPhone 16. Multi-standard compatible (Qi-BPP, Qi-EPP 15W) supporting iPhone 7.5W and Samsung 10W charging. Comprehensive protection suite (FOD, OCP, OVP, OTP) with full certifications (FCC, CE, RoHS, UL-compliant).
Applications: Furniture integration, automotive charging, smart home devices, office equipment, retail displays, hospitality solutions, medical devices, industrial controls
- Qi-BPP, Qi-EPP 15W, iPhone 7.5W, Samsung 10W
- Input: 12V/2A, 19V/0.94A
- Charging Z-Distance: 3-20mm
- Typical efficiency: 83%* (*iPhone 16 at 15mm distance)
- Protection: FOD, OCP, OVP, OTP
- Certificates: FCC, CE, RoHS
- Products meet UL certification requirements.

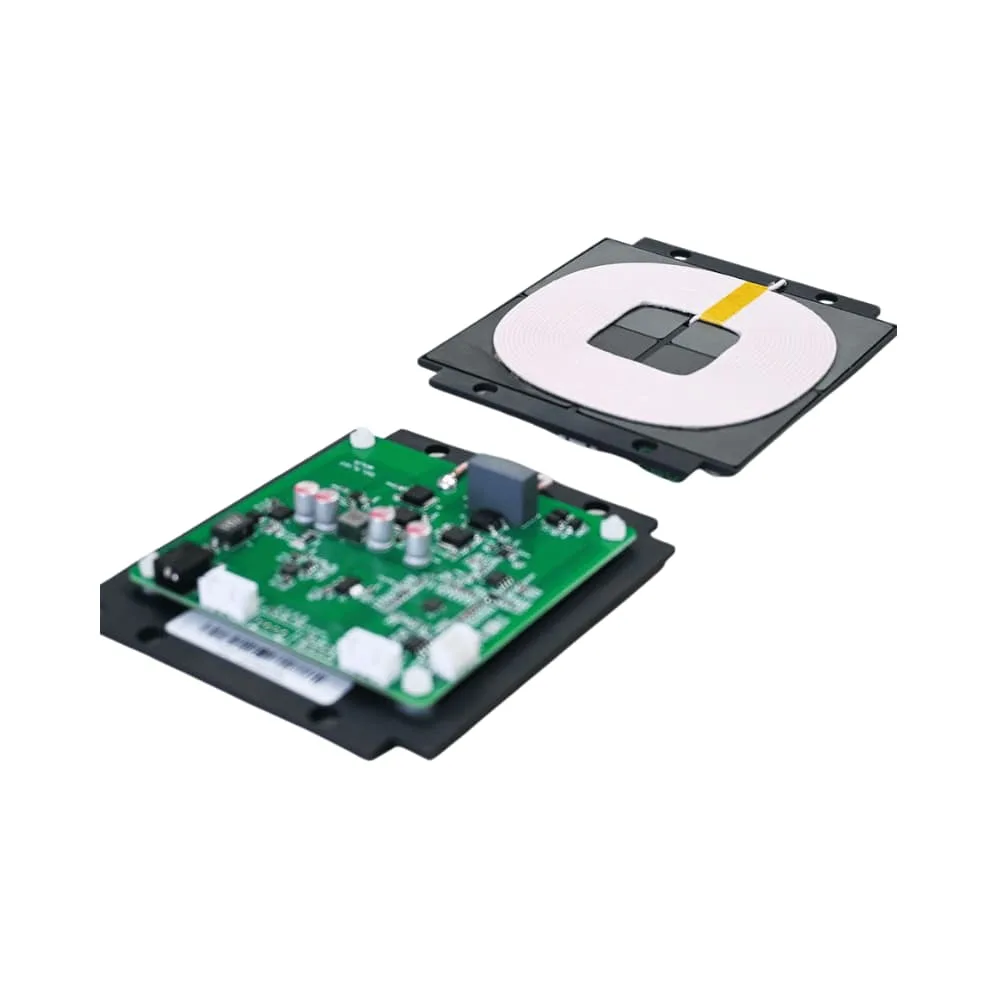

100W Wireless charging module PCB
100W capacity with flexible DC5-21V output and 3A max current. Extended transmission range of 5-35mm with 24V DC input. Fully customizable shape, size and output parameters for seamless integration into various applications.
Applications: Industrial equipment, medical devices, robotics, automotive systems, power tools, vending machines, smart furniture, commercial displays, gaming accessories, IoT devices
- Input: DC24V
- Output voltage: DC5 - 21V
- Output current: 3A Max
- Charging Z-Distance: 5-35mm
- Protection: FOD, OCP, OVP, OTP
- Customizable shape, size, output parameters.
200W High Power Wireless charging module PCB
Industrial-grade wireless charging solution delivering 200W power with 91% efficiency at 25mm distance. Multi-voltage output (29.2V/42V/54.2V) with 6A maximum current. Features ±20mm offset tolerance and comprehensive protection systems. Fully certified meeting TÜV, CE, FCC, and UL requirements.
Applications: Electric vehicles, power tools, industrial equipment, robotics, automated guided vehicles, medical devices, drones, portable workstations, outdoor equipment, emergency backup systems
- Input: DC48V/6A
- Output: DC29.2V/42V/54.2V, 6A Max
- Charging Z-Distance: 20-40mm
- Offset tolerance: ±20mm
- Protection: FOD, OCP, OVP, OTP
- Certificates: Products meet TÜV CE FCC UL certification requirements.
500W High Power Wireless charging module PCB
Industry-leading 500W wireless charging solution with multiple output options (29.5V/42V/54.2V) and 10A max current. Exceptional performance with 92% efficiency at 25mm and superior tolerance (±20mm offset). Comprehensive protection features with complete certifications (TÜV, CE, FCC, UL).
Applications: Electric vehicles, power tools, industrial equipment, e-bikes, automated guided vehicles, robotics, medical devices, commercial equipment
- Input: DC48V/6A
- Output: DC29.2V/42V/54.2V, 10A Max
- Charging Z-Distance: 20-40mm
- Offset tolerance: ±20mm
- Typical efficiency: 92% @25mm
- Protrction: FOD, OCP, OVP, OTP
- Certificates: Products meet TÜV CE FCC UL certification requirements.
PROPRIETORY WIRELESS POWER TECHNOLOGY
ONE POINTECH’s wireless charging solutions, based on its proprietary wireless power technology have a wide range of possible applications. From kitchen appliances, e-bikes, electric scooters, UAVs, robots, and other AGVs. Contact us to learn all about our working applications.
E-BIKES AND E-SCOOTERS
INDUSTRIAL DRONES
ROBOTS
FAQ
Need clarification on wireless charging solutions?
What's the difference between standard and long-range wireless charging?
Standard charging requires precise alignment and close contact (0-5mm), while our long-range modules operate effectively at distances up to 50mm with greater offset tolerance, allowing charging through surfaces and flexible positioning.
Can these modules be customized for specific applications?
Yes, we offer customization services for power requirements, form factors, and integration specifications. Our engineering team can develop tailored solutions for your specific product needs with minimal MOQ requirements.
How difficult is it to integrate these modules into my product?
Our modules are designed for easy integration with comprehensive documentation and reference designs. We provide technical support throughout implementation and offer evaluation kits to simplify testing and development.
What safety features are included in these charging modules?
All modules include comprehensive protection: Foreign Object Detection (FOD), Over-Current Protection (OCP), Over-Voltage Protection (OVP), and Over-Temperature Protection (OTP), ensuring maximum safety during operation.
Are these modules compatible with existing wireless charging standards?
Yes, our modules comply with Qi standards where applicable. The QB32 supports Qi-BPP, while our high-power solutions use proprietary technology that can be customized to work with various devices and standards.
