07 · Module

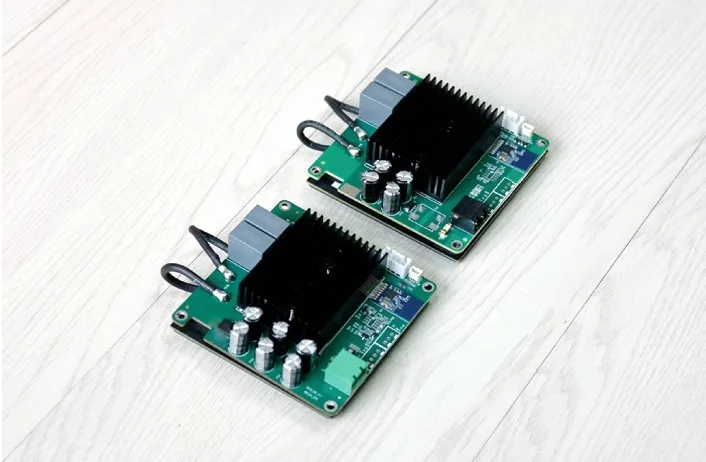

TE10B — 200W Powering Module
Continuous wireless power for robots and moving equipment — no battery needed
The TE10B uses inductive-coupled power transmission to deliver continuous power across a 14–19mm gap — up to 24V/8A at 89% DC-to-DC efficiency. Designed for equipment that is powered directly, without charging a battery: docked robots, drone nests, rotating joints, and platforms in linear motion.
Typical applications
Robot dockingDrone nestsRotating jointsMoving platforms
Specifications
↓ Download datasheet (PDF)| Power input | DC 24V / 10A |
| Power output | DC 24V / 8A Max |
| Transmission distance | 14–19mm (coil to coil) |
| Efficiency | 89% @ 17mm (DC-to-DC) |
| Standby power | ≤ 0.5W |
| Input interface | 2EDG 5.08 |
| Transmitter PCBA | 80 × 80 × 22mm |
| Transmitter coil | 80 × 80 × 7.5mm |
| Receiver PCBA | 80 × 80 × 22mm |
| Receiver coil | 80 × 80 × 7.5mm |
| Protection | FOD, OCP, OVP, OTP |
| Operating temperature | -20 to 55°C |
| Operating humidity | 15–85% RH (non-condensing) |
Engineering resources
CAD files, 3D models and protocol documentation are available on request — tell us about your application.
Key features
- Powers equipment directly — no battery in the loop

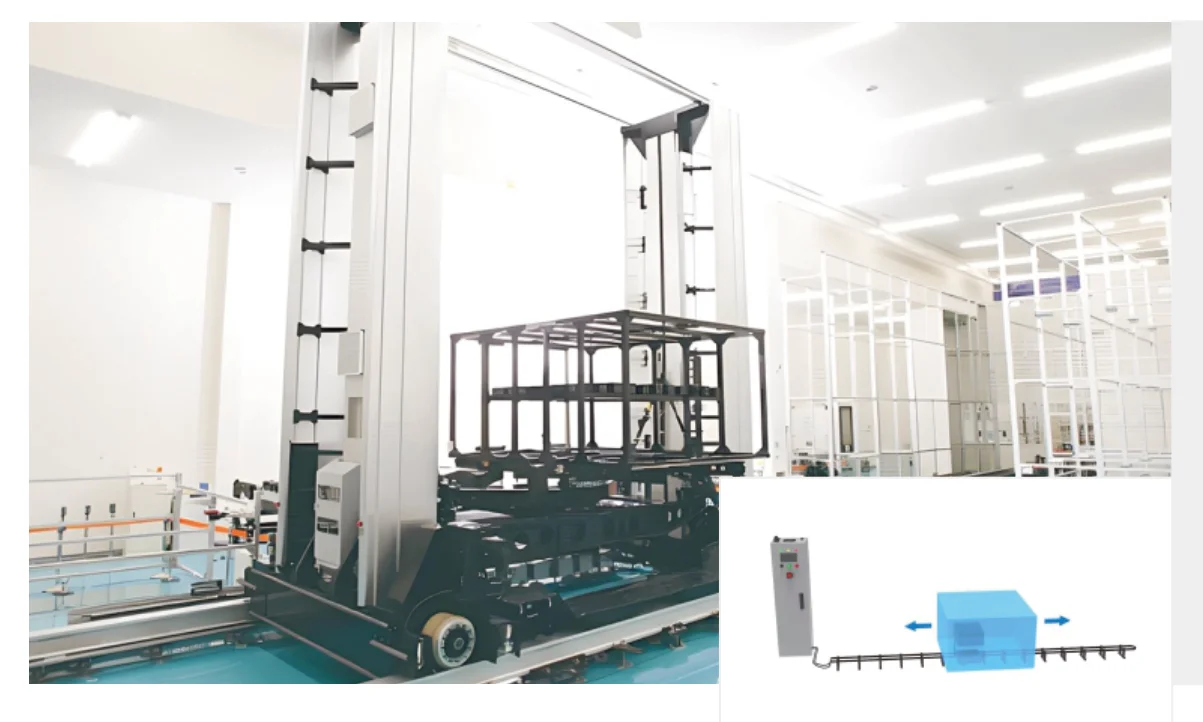

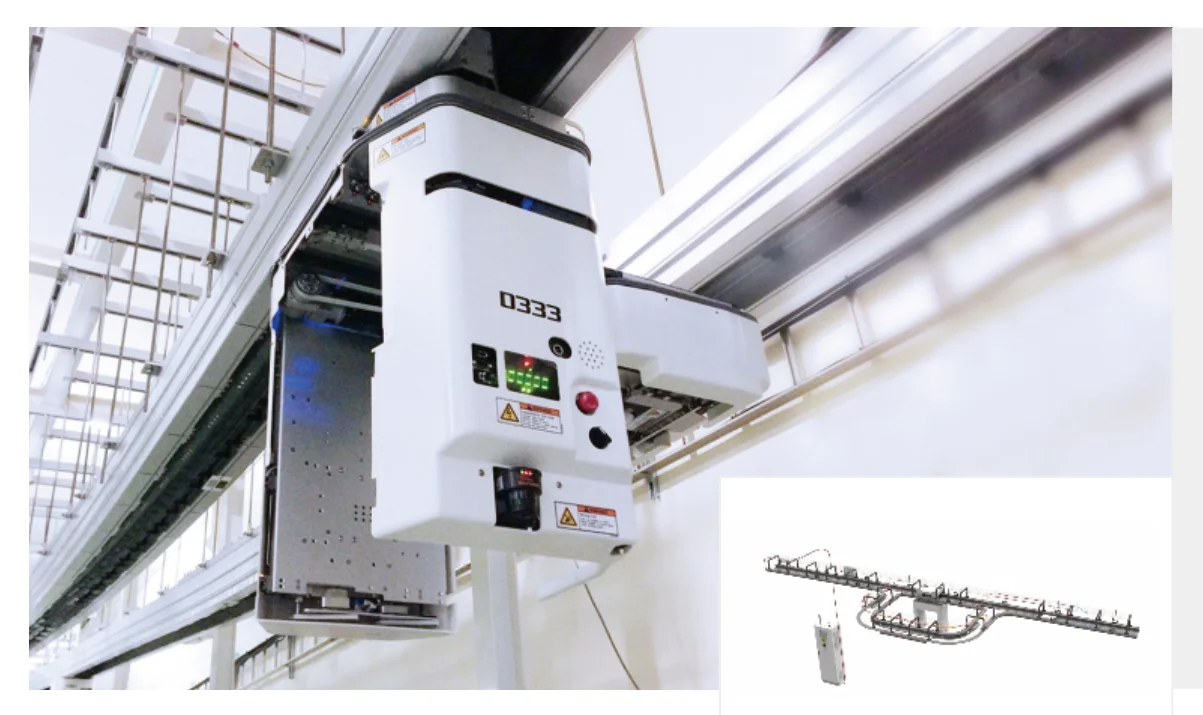

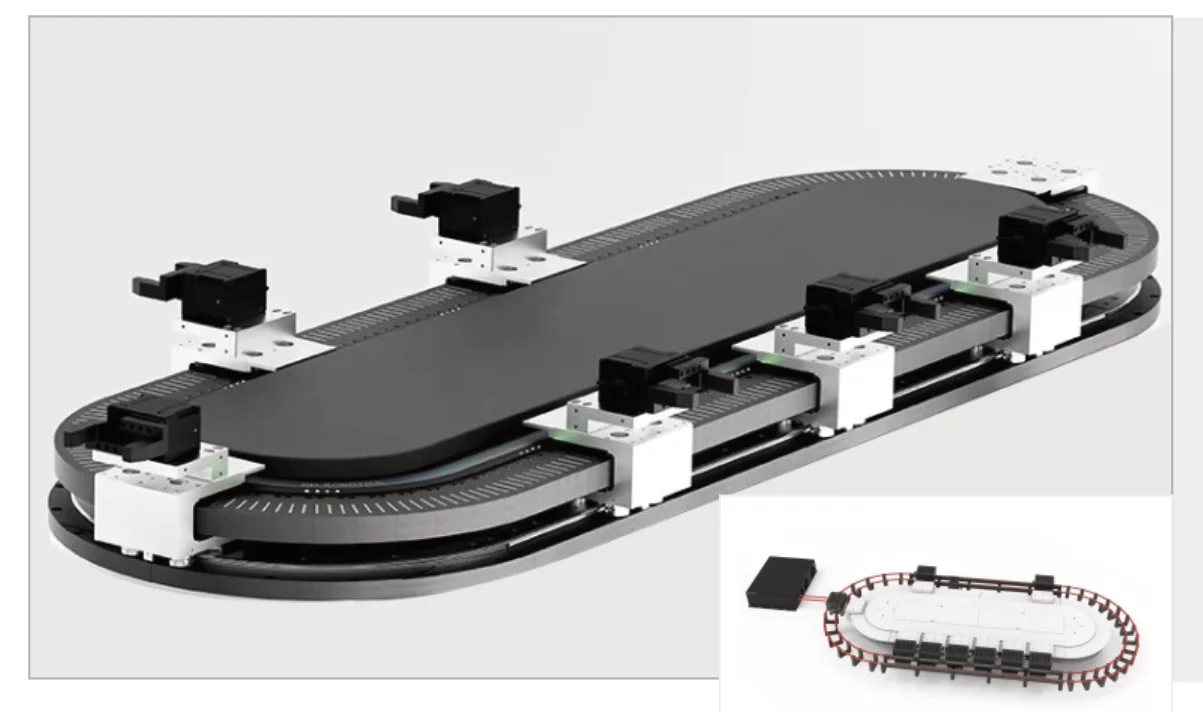

- Maintains power transfer through rotation and linear motion
- Indoor & outdoor operation with full protection suite
- Compact 80mm square PCBA and coil for easy integration
- Ultra-low 0.5W standby consumption
Need a different spec?
Output voltage and current can be configured within range to match your battery. Hardware changes are possible as a development project — talk to us first.
