03 · Module
TF02-800W Charging Module
93% efficiency for heavier LEVs and logistics robots
The TF02 delivers up to 800W of contactless charging power with up to 93% DC-to-DC efficiency. Built for cargo bikes, L3e-class scooters, delivery trikes, humanoid robots and industrial logistics platforms that need fast, alignment-tolerant charging. A 500W variant is available.
Typical applications
Cargo e-bikes & trikesL3e-class scootersHumanoid robotsIndustrial & logistics robots
Specifications
↓ Download datasheet (PDF)| Series | TF02 (800W; 500W variant available) |
| Power input | DC 48V / 20A |
| Power output | 54.2V DC / 15A (customizable) |
| Charging distance | 25–35mm (coil to coil) |
| Peak efficiency | 93% @ 30mm (DC-to-DC) |
| Alignment tolerance | ±15mm horizontal |
| Standby power | ≤ 1W |
| Transmitter PCBA | 130 × 130 × 26mm |
| Transmitter coil | 140 × 135 × 6mm |
| Receiver PCBA | 130 × 130 × 23mm |
| Receiver coil | 140 × 135 × 6mm |

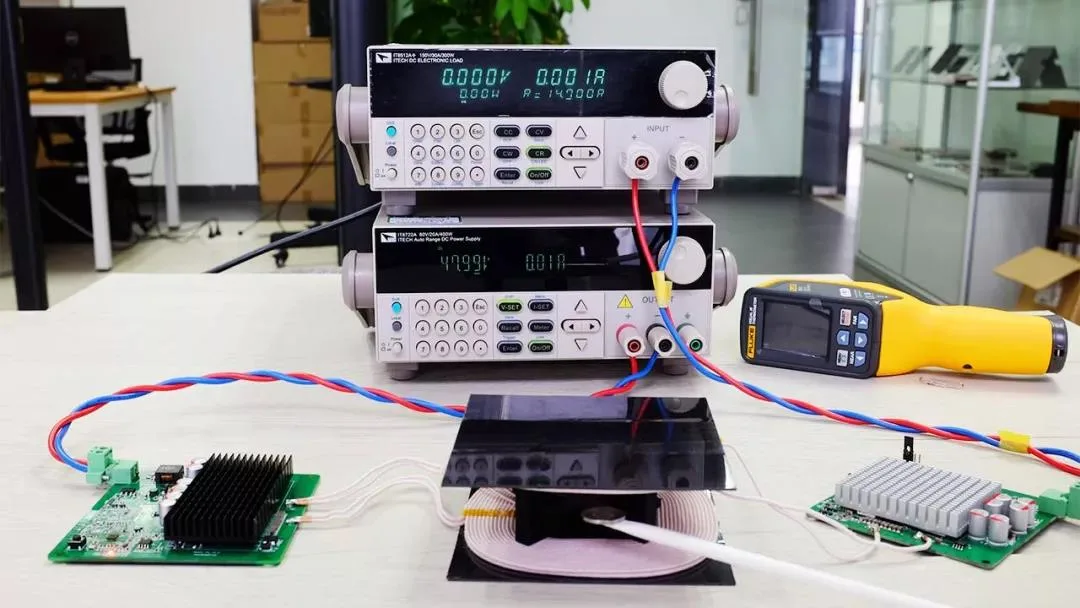

| Protection | FOD, OCP, OVP, OTP |
| Certifications | — |
| Communication | CAN / RS485 on request |
Engineering resources
CAD files, 3D models and protocol documentation are available on request — tell us about your application.
Key features
- Industry-leading 93% efficiency reduces heat and energy cost
- Tolerates real-world parking misalignment
- Custom output voltage matched to your battery pack
- MOQ from 1 unit for engineering evaluation
Need a different spec?
Output voltage and current can be configured within range to match your battery. Hardware changes are possible as a development project — talk to us first.
