02 · Module
TE03-200W Charging Module
The workhorse for e-bikes, scooters and delivery robots
CEcertified
A compact 200W transmitter/receiver set with 15–35mm charging distance and ±15mm alignment tolerance. Park roughly, charge fully — the TE03 makes contactless charging practical for shared micromobility and service robot fleets.
Typical applications
E-bikes & e-scootersShared micromobilityService & delivery robotsWheelchairs & golf carts
Specifications
↓ Download datasheet (PDF)| Power input | DC 48V / 6A |
| Power output | 54.2V DC / 4A (customizable) |
| Charging distance | 15–35mm (coil to coil) |
| Peak efficiency | 91% @ 25mm (DC-to-DC) |
| Alignment tolerance | ±15mm horizontal |
| Standby power | ≤ 0.5W |
| Transmitter PCBA | 100 × 100 × 18mm |
| Transmitter coil | 120 × 120 × 5.5mm |
| Receiver PCBA | 90 × 90 × 18mm |
| Receiver coil | 120 × 120 × 5.5mm |
| Protection | FOD, OCP, OVP, OTP |
| Certifications | CE |
| Communication | CAN / RS485 on request |
Engineering resources
CAD files, 3D models and protocol documentation are available on request — tell us about your application.
Key features
- Ultra-low 0.5W standby for energy-sensitive fleets

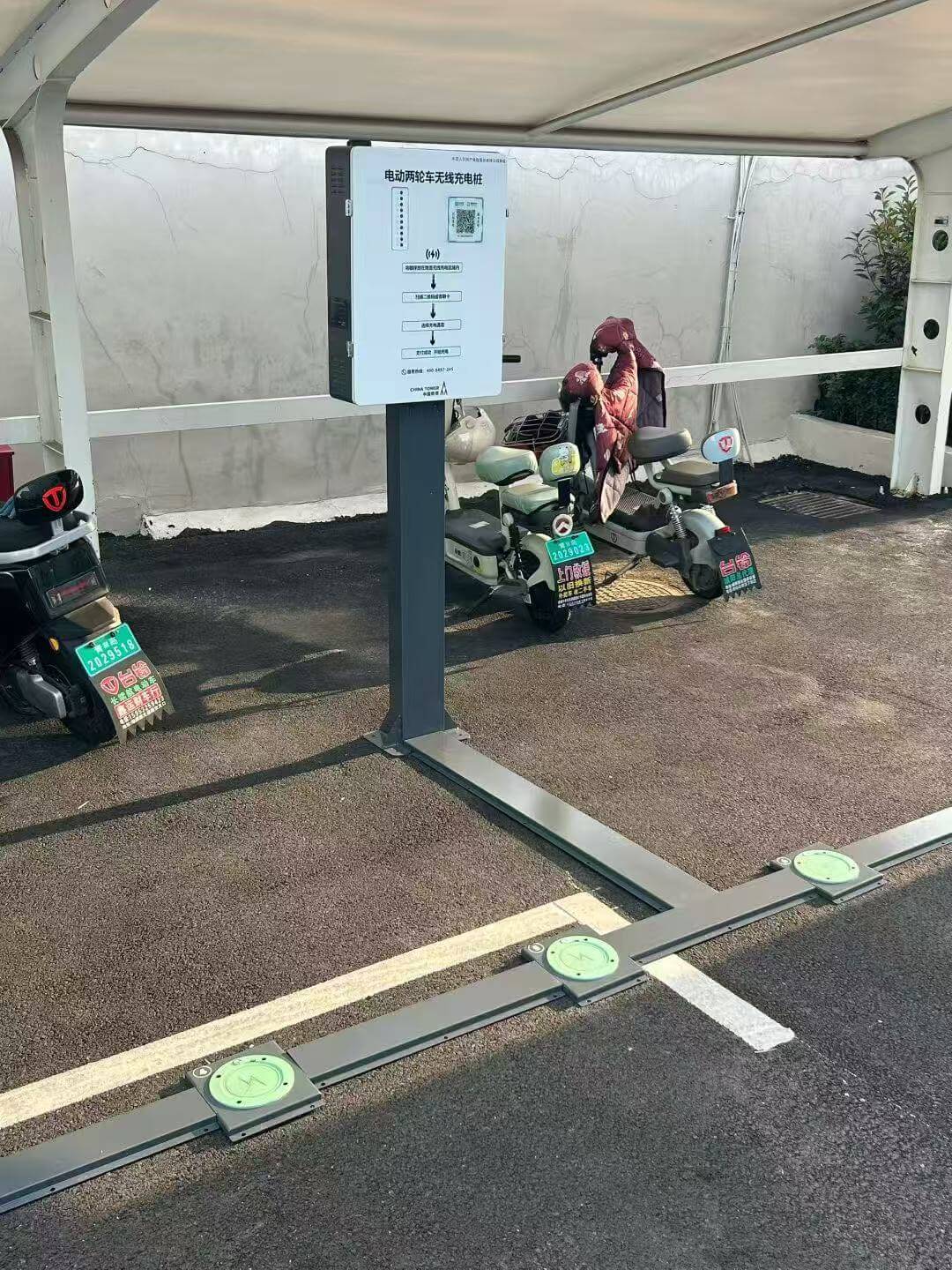

- Slim 5.5mm coil modules integrate into vehicles and ground pads
- Output customizable to 29.2V / 42V / 54.2V battery systems
- MOQ from 1 unit for engineering evaluation
Need a different spec?
Output voltage and current can be configured within range to match your battery. Hardware changes are possible as a development project — talk to us first.
